I. Introduction
New Industry Standard (standard)
Intelligent Measure Control Service System allows intuitive interaction between the user and the machine. It features LED display, intuitive user interface, maintenance alarm system.
Breakthrough in power Management (standard)
Optimal engine management system swiftly coordinates the engine and its peripherals, enabling the machine to function at its best with minimal fuel consumption.
Comprehensive working structures (standard)
Multidirectional application of new design concepts, coupled with previous expertise creates new industry breakthrough on durability, performance and operation diversity.
Remote access protocol (optional)
Preloaded remote access protocol and global positioning system allow remote access to the vehicles locatin, activity log and other necessary information, all features can be accessed through mobile data network.
New safety standard (optional)
Eco-friendly 360o protective structure enhances the durability of the cab with roll over protection. Features quick defrost, air conditioner, built-in anti-noise acoustics paired with an ergonomic suspension seat with hydraulic shock absorber for fatigue free operations.
II. Paraneters
| Specifications | |
|---|---|
| Operating Weight (kg) | 14000 |
| Engine Power (kW/rpm) | 86/2200 |
| Standard Bucket Capacity (m3) | 0.56 |
| Standard Bucket Width (with side cutters) (mm) | 875 |
| Performance | |
| Travel Speed (Low/High) (km/h) | 3.34/5.5 |
| Swing Speed (rpm) | 11.9 |
| Ground Pressure (kPa) | 45 |
| Gradeability (o) | 35 |
| Maximum Arm Crowd Fore (kN) | 65 |
| Maximum Bucket Digging Force (kN) 85 | |
| Equipments | |
| Engine Model | B3.9-C |
| Displacement (L) | 3.9 |
| Swing Device Driving Type Hydraulic Drive | |
| Travel Device Driving Type Hydraulic Drive | |
| Brake Type | Hydraulic Lock |
| Standard Track Shoe Type | Triple Grouser Shoes |
| Track Adjustment Device | Grease Tension |
| Hydraulic Pump Type | Variable Piston Pump |
| Maximum Setting Pressure Traveling (MPa) | 34.3 |
| Working (MPa) | 34.3 |
| Implement | |
| Boom Length (mm) | 4600 |
| Arm Length (mm) | 2500 |
| Bucket Radius (mm) | R1270 |
| Refill Capacity | |
| Fuel (diesel) (L) | 270 |
| Hydraulic oil (Refilling) (L) | 159 |
| Battery Capacity | 2×120AH |

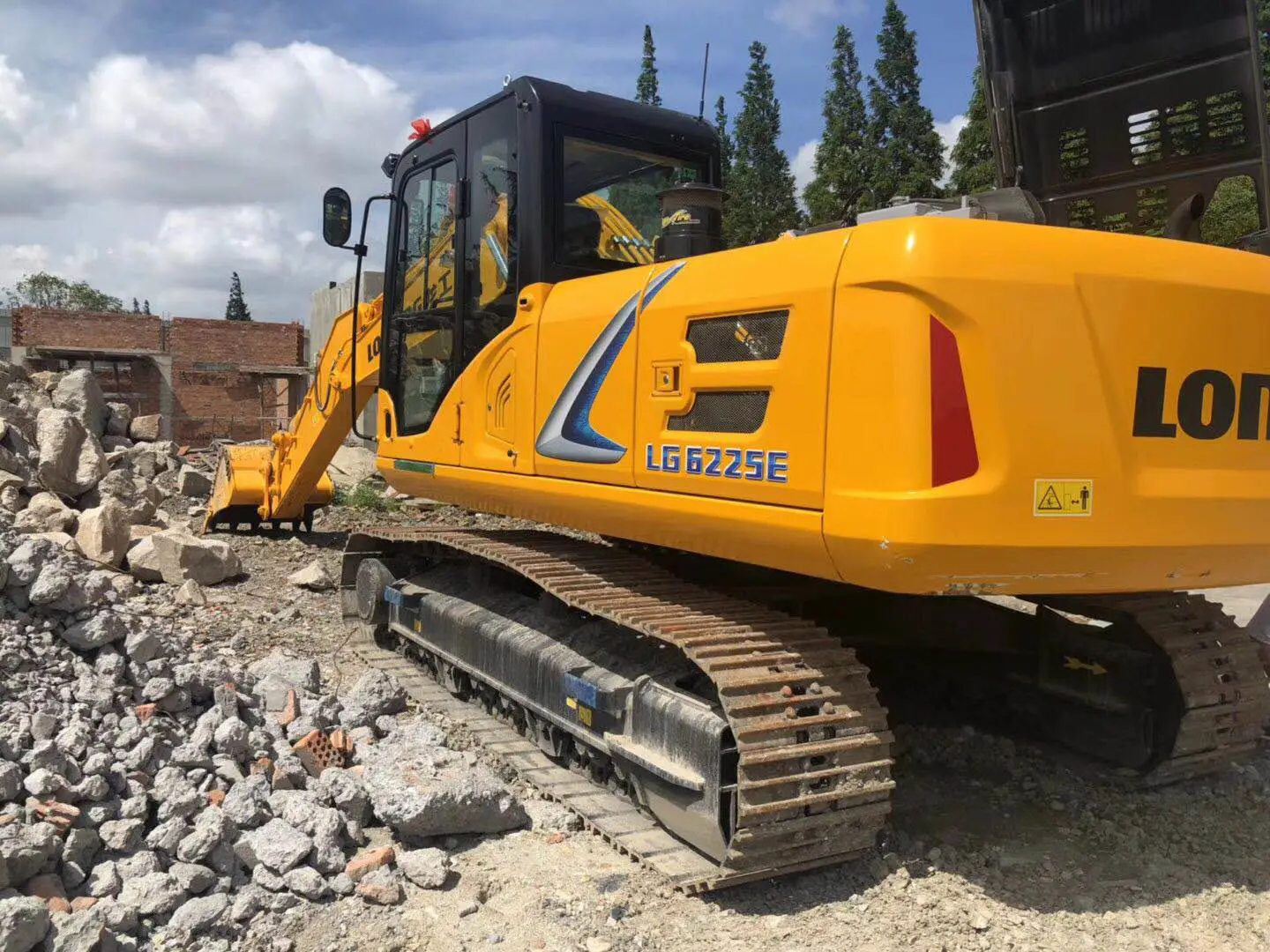

III. Detailed Images
