OEM code product name
1119 020 2103 crankcase
9371 470 2610 cylindrical pin 5×18
9022 341 1010 Spline screw IS-M5×18
9456 621 4330 circlip 40×1.75
9503 003 0440 grooved ball bearing 6203
9503 003 0340 grooved ball bearing 6202
9640 003 1880 oil seal 17×39.9×5
9640 003 1340 oil seal 13×22×5
1106 647 9404 hose
1106 640 3801 pick up body
1119 029 0500 gasket
1119 090 0400 crankshaft (local)
1119 090 0400 crankshaft
9512 003 3140 needle cage 12×16×13
0000 350 0526 filler cap
cylinder
1119 030 2002 piston assy
1115 034 3010 piston ring Φ52×1.5
1108 034 1501 piston pin
9463 650 1200 snap ring 12×1
1119 029 2302 cylinder gasket
0000 400 7000 spark plug
1125 149 0601 Exhaust gasket
9771 021 2580 hose clip Φ34×7
1119 141 2200 manifold
1119 141 1800 sleeve
1119 007 1005 muffler kit standard
1117 649 1100 gasket
1119 640 3200 gil pump assy
1119 640 7100 worm
1119 162 8915 washer
1119 160 2000 clutch
0000 997 0907 tension spring
1119 640 2000 chain sproket 3/8" 7T
1119 642 1501 spur gear
9512 933 3150 needle cage 12×16×24
1119 160 5401 brake band
1118 160 5002 lever
9468 621 0330 circlip 6×0.7
9460 624 0500 e-clip 5
1119 162 5205 pin
0000 998 1801 torsion spring
1117 162 5020 lever
1117 162 8906 sealing washer
1119 162 7900 tension spring
9022 313 0660 spline screw IS-M4×12
1119 021 1102 cover
1119 642 7800 washer
9455 621 4010 circlip 36×1.2
0000 958 1231 washer
9460 624 1001 e-clip 10×1.5
1117 790 9100 hand guard
9022 341 1080 spline screw IS-M5*16

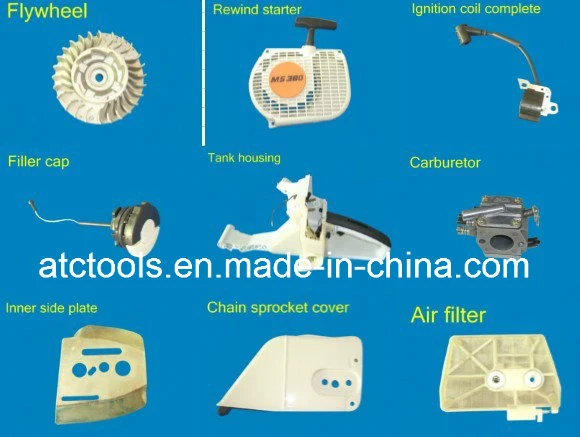

1119 400 1206 flywheel
9210 261 1140 hexagon nut M8*1
0000 400 1300 ignition coil
1119 084 1803 fan housing
1119 080 2100 fan housing with rewind starter
1117 190 0601 rewind spring
1117 190 1011 rope rotor
pawl assy
1122 190 3400 starter grip
1122 190 2900 starter rope
1119 084 7800 segment
1119 350 0852 tank housing
0000 350 5800 tank vent
0000 350 0525 filler cap
1119 358 7701 hose
1118 182 0900 switch shaft
1118 182 1006 throttle trigger
1117 182 4500 torsion spring
1118 791 0602 handle molding
1119 123 7501 grommet
air filter
1119 790 1700 handlebar
1125 640 1701 chain sproket cover
0000 955 0801 collar nut M8
1119 120 0650 carburetor
1121 790 9912 annular buffer
1125 650 7700 chain catcher
1121 790 9909 annular buffer
1119 790 9901 annular buffer
0000 953 6605 collar screw M8
chain adjusting screw kit
1119 664 1000 inner side plate
1128 664 0500 bumper spike
1119 140 1906 carburetor box cover
1119 080 1602 shroud
1129 890 3401 combination wrench
0812 370 1000 screw driver T27*120*70
OEM codePart Name
Crankcase
9503 003 0242Grooved ball bearing 6201
9640 003 1195Oil seal 12*22*5
4134 030 0403Crankshaft
9075 478 4159Pan head self-tapping screwIS-D5*24
9075 478 4175Pan head self-tapping screwIS-D5*28
Cylinder assy
4134 029 2300Cylinder gasket
4134 020 1213Cylinder
4134 030 2011Piston
4119 034 1500Piston ring
4119 034 1500Piston pin
9463 650 1000Snap ring
0000 400 7000Spark plug
4134 149 0600Exhaust gasket
Gasket sets
4134 080 2101Fan housing with rewind starter
4134 080 1801Fan housing
4134 190 0601Rewind spring
4128 195 0400Rope rotor
0000 190 3405Starter grip
Pawl assy
4134 400 1200Flywheel
4134 400 1301Ignition coil
4134 140 0602Muffler
4134 084 0911Shroud
4134 350 0400Fuel tank assy
4128 358 0800Hose
Hose,grommet
0000 350 3506Pickup body
0000 951 1102Screw D5*26
4128 350 0505Filler cap
4134 120 0102Carburetor housing
4134 123 7500Grommet
4128 129 0900Gasket
Carburetor
4134 129 0900Gasket
4134 129 3000Sealing ring
4134 140 2800Filter housing
4134 141 0300Air filter
4134 141 0500Filter cover
4128 182 9500Choke knob
4130 350 6200Fuel pump
4134 120 0603Carburetor
4134 160 0601Clutch housing
9503 003 7450Grooved ball bearing 6202
9456 621 3860Circlip 35*1.5
4128 160 2001Clutch
4134 160 2900Clutch drum
4134 160 0400Clutch shroud
4137 791 9300Rubber insert
9457 621 4481Circlip
4137 790 7200Sleeve
4128 790 1701Handlebar
4128 791 0300Handle,left
4128 790 1309Handle,right
4128 182 1700Slide control
4128 182 1000Throttle trigger
4128 182 0800Trigger interlock
4128 182 3200Throttle cable
4134 790 3200Handlebar support
4128 790 7501Tommy screw
4137 640 0100Gearhead
9503 003 9850Grooved ball bearing 609
4130 640 7301Set of pinions
Drive pinion
Spur bevel gear
4130 642 0601Drive shaft
9503 003 5190Grooved ball bearing 6001-2RS
9503 003 9853Grooved ball bearing 609-2Z
4137 710 3800Thrust plate
4130 713 1600Thrust washer
4126 642 7600Collar nut M10×l/h thread
4126 713 3100Rider plate
4137 711 3200Drive shaft
4119 007 1013Deflector kit
4119 710 6000Blade
OEM codePart Name
Crankcase
9503 003 0242Grooved ball bearing 6201
9640 003 1195Oil seal 12*22*5
4134 030 0403Crankshaft
9075 478 4159Pan head self-tapping screwIS-D5*24
9075 478 4175Pan head self-tapping screwIS-D5*28
Cylinder assy
4134 029 2300Cylinder gasket
4134 020 1213Cylinder
4134 030 2011Piston
4119 034 1500Piston ring
4119 034 1500Piston pin
9463 650 1000Snap ring
0000 400 7000Spark plug
4134 149 0600Exhaust gasket
Gasket sets
4134 080 2101Fan housing with rewind starter
4134 080 1801Fan housing
4134 190 0601Rewind spring
4128 195 0400Rope rotor
0000 190 3405Starter grip
Pawl assy
4134 400 1200Flywheel
4134 400 1301Ignition coil
4134 140 0602Muffler
4134 084 0911Shroud
4134 350 0400Fuel tank assy
4128 358 0800Hose
Hose,grommet
0000 350 3506Pickup body
0000 951 1102Screw D5*26
4128 350 0505Filler cap
4134 120 0102Carburetor housing
4134 123 7500Grommet
4128 129 0900Gasket
Carburetor
4134 129 0900Gasket
4134 129 3000Sealing ring
4134 140 2800Filter housing
4134 141 0300Air filter
4134 141 0500Filter cover
4128 182 9500Choke knob
4130 350 6200Fuel pump
4134 120 0603Carburetor
4134 160 0601Clutch housing
9503 003 7450Grooved ball bearing 6202
9456 621 3860Circlip 35*1.5
4128 160 2001Clutch
4134 160 2900Clutch drum
4134 160 0400Clutch shroud
4137 791 9300Rubber insert
9457 621 4481Circlip
4137 790 7200Sleeve
4128 790 1701Handlebar
4128 791 0300Handle,left
4128 790 1309Handle,right
4128 182 1700Slide control
4128 182 1000Throttle trigger
4128 182 0800Trigger interlock
4128 182 3200Throttle cable
4134 790 3200Handlebar support
4128 790 7501Tommy screw
4137 640 0100Gearhead
9503 003 9850Grooved ball bearing 609
4130 640 7301Set of pinions
Drive pinion
Spur bevel gear
4130 642 0601Drive shaft
9503 003 5190Grooved ball bearing 6001-2RS
9503 003 9853Grooved ball bearing 609-2Z
4137 710 3800Thrust plate
4130 713 1600Thrust washer
4126 642 7600Collar nut M10×l/h thread
4126 713 3100Rider plate
4137 711 3200Drive shaft
4119 007 1013Deflector kit
4119 710 6000Blade
