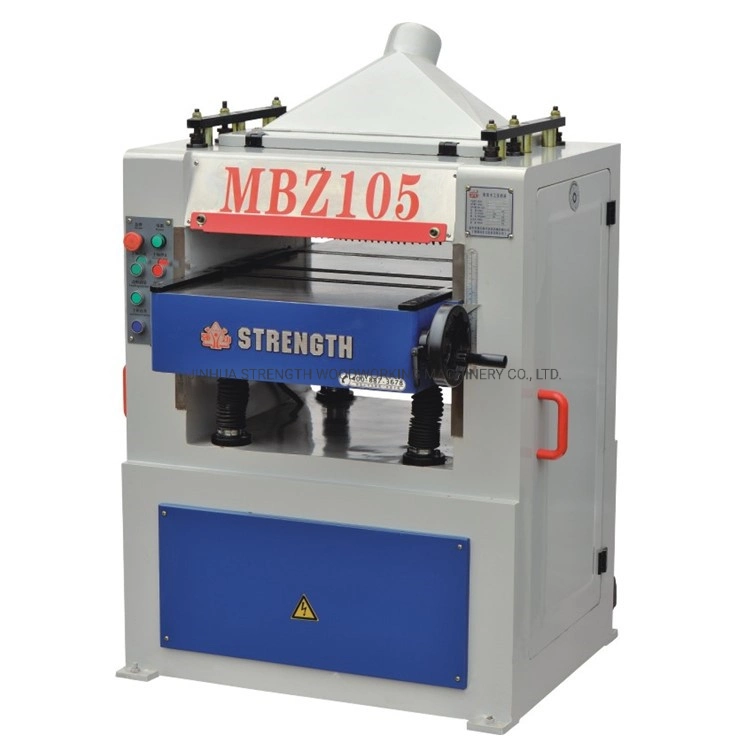

Model: MBZ105(With spiral cutter head)
| Main technical data | MBZ105 |
| Max. wood width | 500mm |
| Max. wood thickness | 220mm |
| Min. wood thickness | 8mm |
| Min. working length | 260mm |
| Max. cutting & planing depth | 12mm |
| Cutter head speed | 5000r/min |
| Feeding speed | 6-9-12-15m/min |
| Main motor | 5.5kw |
| Feeding motor | 0.55kw |
| Lifting motor | 0.18kw |
| Machine weight | 820kg |

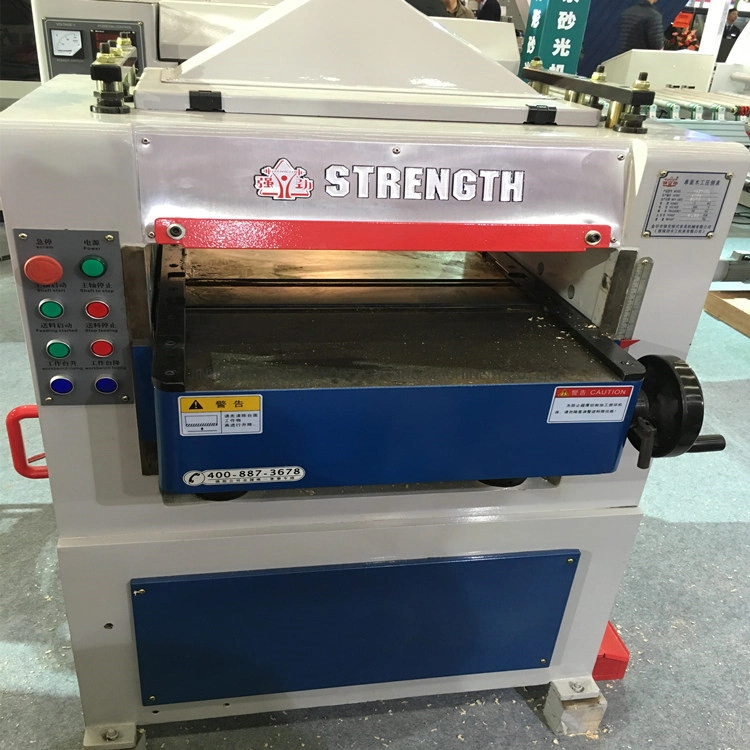

Wood planer machine main features:
1.high precision
2.long service time and durable quality
3.planing many kinds of the wood material
4.settting with helical cutter head or straight cutter
5.safty and high protection
6.high efficiency
