Echo Sounder South Sde28s+ High Target HD-Max Single Beam Echo Sounder

PRODUCT DESCRIPTIONSOUTH SDE-28S+ echo sounder is a kind of industrial control and digital echo sounder which is integrated with the 12.1-inch TFT-LCD screen, industrial control unit, echo sounding unit, data processor, internal memory unit and kinds of interfaces and I/O devices. The special design makes it dust-proof, waterpro

Featured Products

PRODUCT DESCRIPTION

SOUTH SDE-28S+ echo sounder is a kind of industrial control and digital echo sounder which is integrated with the 12.1-inch TFT-LCD screen, industrial control unit, echo sounding unit, data processor, internal memory unit and kinds of interfaces and I/O devices. The special design makes it dust-proof, waterproof, shockproof. It collects depth measurement, graphical navigation, positioning data, water depth data acquisition together. All these features make the instrument strong compatibility, stable performance and reliable accuracy.

KEY FEATURES

Onboard Software

SDE-28S+ (for depth measurements)



·Real-time vivid display of graphic and data, easy approach to underwater waves

·Integrated sound velocity calculation for more accurate results

·Smart alarm for shallow water and  "No echo" tracking to secure hydrographic operations

·Real-time display of the water depth value tracking lines, easy to be compared with underwater waves



Auto change of depth range          Real-time display



PowerNav (for navigation purpose)



·New software kernel, faster processing and more stable

·Professional Engineering map sheet and data management, wizard-style parameter setting

·High compatibility, flexible to import graphs and data, connectible to all GPS devices and echo sounders

·Modular designed, meets diverse needs of hydrographic engineering projects

Measurements Frequency 200 kHz

Beam Angle 7

Depth Resolution 0.1ft/0.01m

Accuracy ±1cm±0.1 D (0.1% of depth value)

Ping Rate 14Hz, Maximum 30Hz

Sound Velocity 1300-1700m/s, resolution is 1m/s

Depth Range 0.3-300m/900ft Draft 0-9.9m

Gain Control AGC and TVG, depth and gain, a double door tracking

Output data format SOUTH, SDH-13D, DES025, INN455, ODOM etc

Physical Environmental -30 ~+60 non-condensing

Output Power Up to 300 watts

Power Supply 9-15V DC, less than 25w, 110~265V AC (optional),

Dimension 35cm 29cm 14cm Weight 7.5kg Hardware part

Embedded system index CPU frequency 1.6GHz Internal memory 2G Memory capacity 8G high-speed CF card (supports extended storage)

I/O interface 2 USB 2 RS232 1 VGA interface

Display Panel Layout 12.1-inch color LCD Touch screen

Embedded windows XP OS Power ON/OFF

Interface protection Separate Panel Overlay for Keyboard Mouse

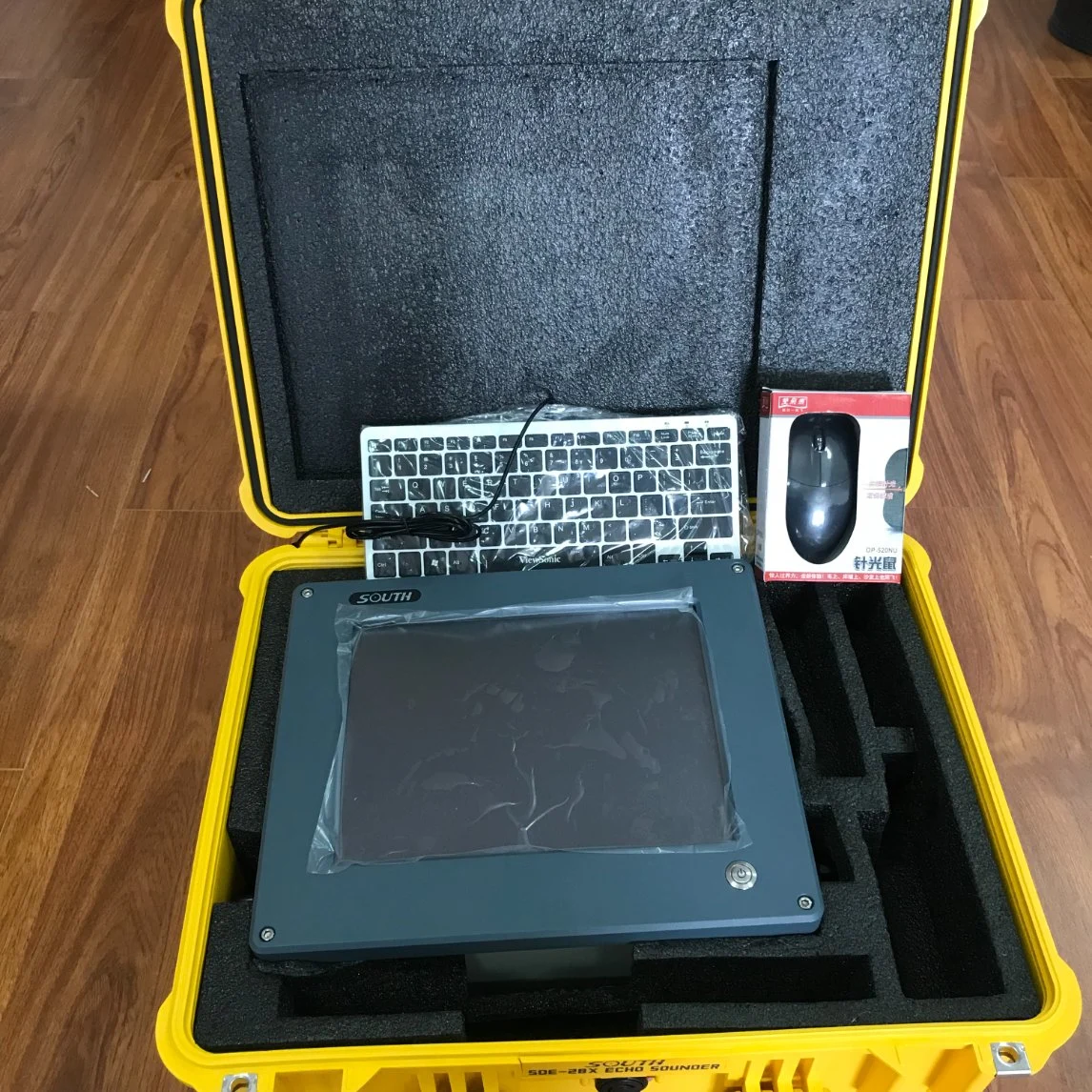

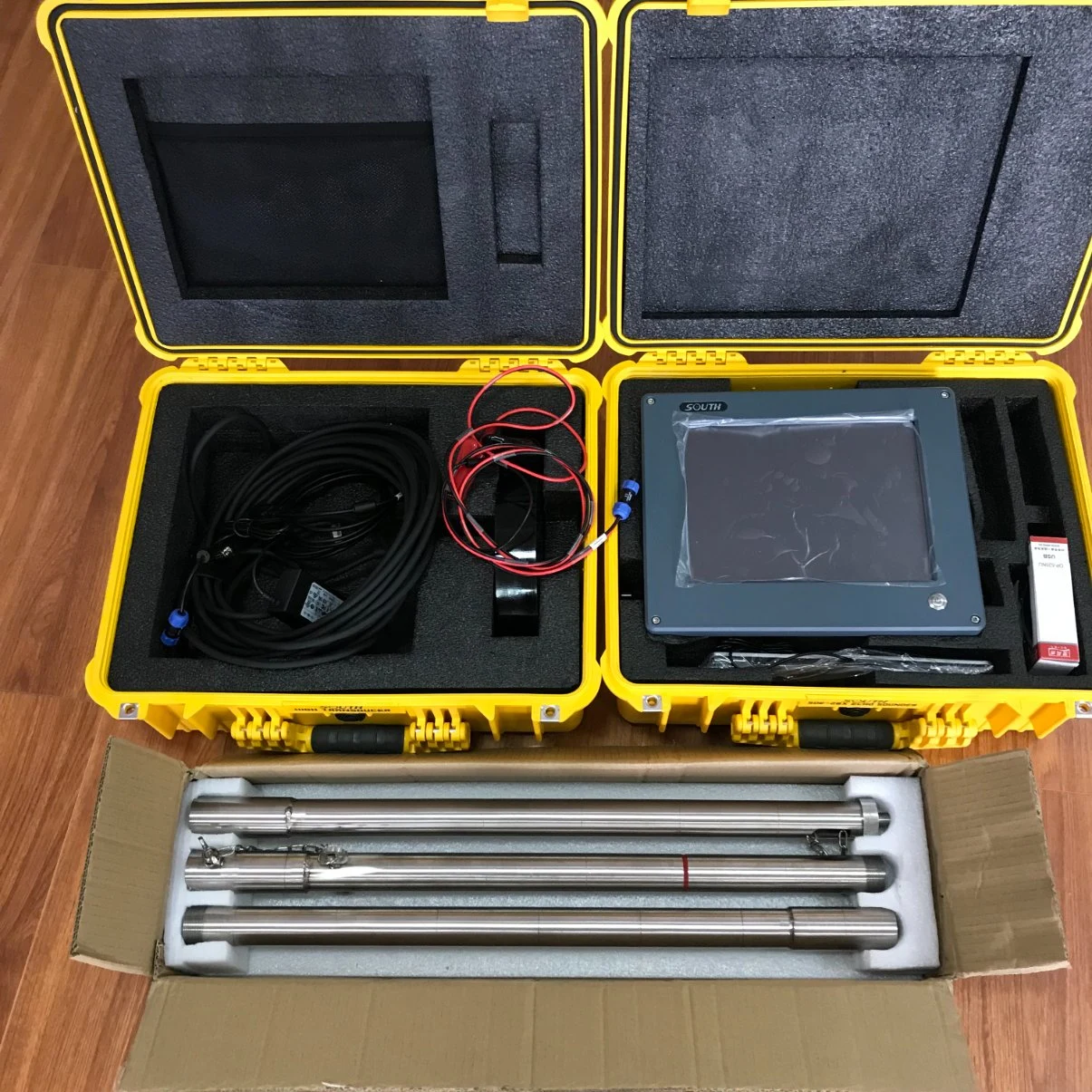

PRODUCT SHOW
Echo Sounder South Sde28s+ High-Target HD-Max Single Beam Echo SounderEcho Sounder South Sde28s+ High-Target HD-Max Single Beam Echo SounderEcho Sounder South Sde28s+ High-Target HD-Max Single Beam Echo SounderEcho Sounder South Sde28s+ High-Target HD-Max Single Beam Echo SounderEcho Sounder South Sde28s+ High-Target HD-Max Single Beam Echo SounderEcho Sounder South Sde28s+ High-Target HD-Max Single Beam Echo Sounder

PRODUCT SPECIFICATION

Frequency200 kHz
Beam Angle7
Depth Resolution0.1ft/0.01m
Accuracy±1cm±0.1 D (0.1% of depth value)
Ping Rate14Hz, Maximum 30Hz
Sound Velocity1300-1700m/s, resolution is 1m/s
Depth Range0.3-300m/900ft
Draft0-9.9m
Gain ControlAGC and TVG, depth and gain, a double door tracking
Output data formatSOUTH, SDH-13D, DES025, INN455, ODOM etc
Physical
Environmental-30 ~+60 non-condensing
Output PowerUp to 300 watts
Power Supply9-15V DC, less than 25w,
110~265V AC (optional),
Dimension35cm 29cm 14cm
Weight7.5kg
Hardware part
Embedded system indexCPU frequency 1.6GHz, Internal memory  2G Memory capacity  8G high-speed CF card (supports extended storage)
I/O interface2 USB 2 RS232  1 VGA interface
Display Panel Layout12.1-inch color LCD
Touch screen
Embedded windows XP OS
Power ON/OFF
Interface protection
Separate Panel Overlay for
Keyboard
Mouse

PACKING & SHIPPING


Echo Sounder South Sde28s+ High-Target HD-Max Single Beam Echo Sounder
PAYMENT


Echo Sounder South Sde28s+ High-Target HD-Max Single Beam Echo Sounder

COMPANY INFORMETION

Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying  accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services  during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

Echo Sounder South Sde28s+ High-Target HD-Max Single Beam Echo Sounder

FAQ

Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.

b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"

Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.

Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific
serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
